Control of Fugitive Fine Coal Particulate Emissions from Coal Handling System at Coal-Fired Power Plants using a Two-Stage Vortex Scrubber

1. Introduction

In coal-fired power plants, coal is processed before feeding it to the boiler for combustion. During the processing of the coal, a significant amount of particulate is emitted inside the housing and to the atmosphere. Coal particulate is emitted from mainly during the crushing, grinding, milling, and transportation of coal (Miller, 2011). In plants wherein the particulate handling units are located outside the building, the contamination of the surrounding air due to the dust emitted from these facilities is a matter of concern for the operators of the plant. During the coal handling and processing of coal, coal particles disperse and become airborne. In particular, particles of size less than 2.5 microns (PM_2.5) can cause serious health problems. The effect of coal particles on health has been discussed in studies related to the control of airborne dust emitted from coal mines and coal-fired power plants (Lockwood and Fana, 2014; Gottlieb et al., 2010). Fugitive fine coal particulate is the one that is not carried by the flue gas passing through the stack (Sandy Creek Services, 2015; Currier and Neal, 1979). Examples of fugitive particles include coal particulates from coal handling and processing units and fine particles from fly ash and bottom ash handling units. Local or centralized fugitive dust control units are operated in coal-fired power plants (Sandy Creek Services, 2015). Based on the source of emission, various technologies have been developed for the purpose of particulate control; the most widely used is the bag filter. A high moisture coal particle can cause filter clogging, whereas a low moisture coal particle in containments, such as a bag filter, increases the risk of explosion. Li et al. (2015) studied the effect of water content on the performance of a bag filter unit. In the case of open facilities, the coal particle control unit involves supressing the dust using water spray (Tessum and Raynor, 2015). Wet scrubbers are more suitable for the safe control of coal particle emitted from coal handling plants (Schnelle and Brown, 2016; Brauer and Varma, 2012; Nath and Cholakov, 2009). All types of wet scrubber, independent on the size and shape of the separation unit, apply the same mechanisms for particle separation from gas stream, the impaction (inertial impingement), interception and diffusion mechanism. The types of wet scrubbers are classified bsed on the gas-liquid interface. There are four types of the interfaces created by various processes, liquid films (packed bed scrubbers), liquid jets (jet scrubbers), drops (venturi scrubbers, vortex scrubbers, rotating disc scrubbers) and bubbles. Among other types of wet scrubber units, vortex scrubbers are the most simple and low energy demanding units (Brauer and Varma, 2012). Depending on the shape of the unit, vortex (or self-induced spray) scrubbers can employ two types of gas-liquid interface, liquid film which can be build on the internal walls of the scrubber and on the walls of the baffles, if any is installed, and drops created and dispersed by the friction between the high velocity streaming gas flow thorough the vortex channel parallel to the liquid surface, as noted in Brauer and Varma (2012). The gas velocity inside the channel should be in the range between 15 to 30 m/s. The higher the relative flow of dust laden gas to the droplets the higher the collection efficiency. High gas velocities are directly related to high pressure drop of the unit. Pressure drop of the scrubber units is related to the energy required for movement of the gas flow through the internal volume of the scrubber and to the frictional losses (Spellman and Whiting, 2014). Typical pressure drop values for the vortex type scrubbers are in the range between 1500 and 3000 Pa (Brauer and Varma, 2012). The most representing type of the vortex scrubber is the model Rotoclone N (AAF 2008). The inflow gas stream is divided in two and flows through two parallel vortex channels, arranged in opposite direction to each other. Rotoclone N represents a single stage scrubber with two channels in parallel arrangement.

In this study, a pilot scale two-stage vortex scrubber was developed and tested using fly ash as a test dust. As stated in Brauer and Varma (2012), if the scrubber is arranged as two stage unit, the particle collection efficiency can be improved with the increase of pressure drop. In this study the authors aimed to demonstrate that a two stage vortex scrubber can be applied for improvement of the particle collection efficiency without any excessive pressured drop increase. Vortex scrubber is suitable for processing high volume of air and can be used for the control of centralized fugitive fine coal particulate inside buildings where coal is processed fuel coal for combustion. The two stage vortex scrubber is composed of two vortex chambers with goal of improving the particle collection efficiency at low pressure drop. The unit was operated by varying the pressure drop from 200 mmAq to 240 mmAq and the particle concentration from 0.17 g/m³ to 0.33 g/m³. In terms of the water level inside the scrubber, two operating modes were studied, the water batch drain (which would represent a single stage scrubber unit) and the continuous drain mode (which would represent an effective two stage scrubbing unit). A simple 3D volume of fluid (VoF) model was used for a CFD simulation.

2. Experimental

2. 1 Test system setup

The test system comprises an air prefilter, gas and solid particle injection ports, a coal dust feeding unit, a two-stage vortex scrubber, ports for measuring the particle concentration, a flow control unit, and an induced draft (ID) fan. The air prefilter (1) was used to remove airborne particles from the incoming air. To simulate the operating conditions of a real site, ports were made for injecting various gases (2) and solid particles (3). The feeding unit comprises a solid particle metering feeder (5), a particle ejector (4), and a compressed air pressure regulator. These parts were optimized for a uniform distribution of the solid particles inside the inlet duct of the system. The vortex scrubber (9) consists of core elements, two vortex channels (10, 11) with breaking baffles (12), water containers for controlling the water level in both the channels, and a water droplet separating demister (13). The casing of the scrubber was equipped with drain valves for draining the particle-contaminated water settled at the bottom of the casing (16, 17) and for controlling the operating mode, bench or continuous water removal (14, 15). The solid particle concentration was measured at the inlet (6) and outlet (19) of the scrubber. The flow control unit (20) and the ID fan (21) were installed for controlling the flow rate and system pressure drop, respectively. Figs. 1 and 2 show the schematic and the real image of the pilot scale system, respectively.

Fig. 1.

Schematic of pilot scale two-stage vortex scrubber.

Fig. 2.

Real image of pilot scale two-stage vortex scrubber.

2. 3 Test method and operating modes

Table 1 lists the test parameters for the two modes. The flow rate was kept constant at 30 m³/min (under room conditions) for all tests. To evaluate the effect of water drain and with it the water level control, two modes were operated: batch and continuous drain modes. In the batch drain mode, the system was filled with water until the water level exceeded the height of the second vortex channel. The tests were then started, and the water valves were not opened until the tests were completed. In the continuous drain mode, the system was continuously filled with water, and the drain valves were operated to remove the bottom settled water from the system. In both the modes, the flow was controlled to keep the system pressure drop at a certain value, as listed in Table 1.

Table 1.

Test parameters and operating mode.

2. 4 Test material

Fly ash from a coal-fired power plant (research institute internal plant) was used as the test material. Three levels of feeding rate were set. These values of dust concentration are common at coal handling sites. Fig. 3 shows the fly ash particle size distribution. The mean particle size is 3.65 microns.

Fig. 3.

Test particle size distribution, Scanning Electron Microscope (SEM) 1000×image and the consisting elements.

2. 5 Operating principle of the two – stage vortex scrubber

Vortex scrubbers operate based on the water dispersion inside the vortex channel with dimensions 15 mm open slit and the length of 1200 mm as shown in Fig. 4. Thus, the generated drops flow with a high speed along with the flue gas and follow the chamber flow direction. Inside the vortex chamber, the solid particles and liquid drops move relative to each other, and this motion is mainly responsible for particle separation. After passing through the vortex chamber, the liquid drops and flue gas get separated. The drops containing solid particles settle down on the liquid surface and the flue gas, which is free from particles, flows toward the outlet duct. The remaining fine drops dispersed in the flue gas are finally separated inside the demister before reaching the outlet duct. In the case of the two-stage vortex scrubber, the same principle is employed for both the separation stages. The water level is controlled by opening the water filling and drain valves installed on the system casing, as shown in Fig. 1 (red colored square). At initial stage, the water level is above the channel of vortex chamber as shown in Fig. 4a. After the start of operation, the level of water is changed according to the system pressure drop as shown in Fig. 4b.

Fig. 4.

Particle removal inside the vortex chamber: operating principle of the two-stage vortex scrubber system at (a) initial status and (b) during operation.

3. Results and Discussion

Two modes of operation were considered, and the tests were performed at a fixed system pressure drop and by varying the particle injection rate. Both the modes were operated under the same laboratory conditions and with the same dust particle inlet concentrations.

3. 1 Water batch drain mode

During the operation in this mode, the system was initially filled with water, and the tests were then started. At the point where the system pressure drop reached a value of 200 mmAq, the fly ash was injected, and the particle removal efficiency was evaluated by measuring the solid particle concentration at the inlet and outlet of the scrubber unit. Fig. 5 shows the outlet concentrations of PM₁, PM_2.5, and PM₁₀ particles for scrubber pressure drop values of 200, 220, and 240 mmAq. With the increase in the pressure drop, the concentrations of the particles decrease. A higher pressure drop means that the turbulence inside the vortex chamber is high due to high velocities inside the vortex channel, and the particles tend to collide with the water droplets and settle down on the water surface, thus separating the particles from the gas stream. The maximum concentrations of PM₁, PM_2.5, and PM₁₀ particles reached 245, 380, and 425 μg/m³, respectively (Fig. 5a), corresponding to an inlet concentration of 0.33 g/m³. Fig. 6 shows the particle collection efficiency as a function of the scrubber pressure drop operated in the water batch drain mode. With the increase in inlet concentration, the overall efficiency increases slightly. This phenomena is noted in Yi (2009) as the dependency of the collection efficiency on the inlet concentration.

Fig. 5.

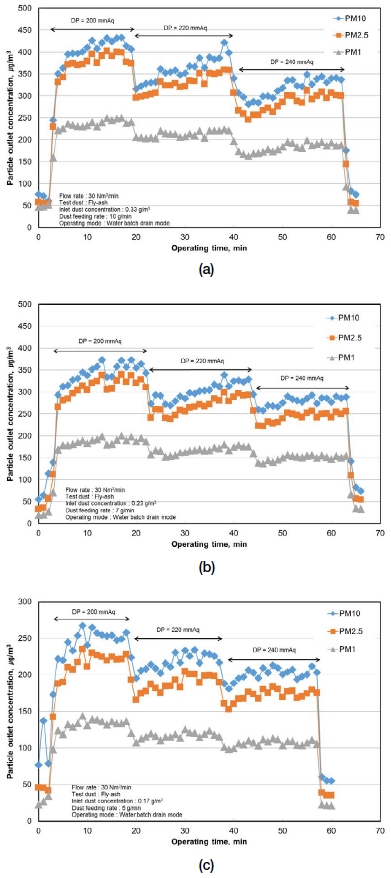

Particle outlet concentration of PM1, PM2.5, and PM10 particles as a function of the scrubber pressure drop at variation of inlet particle concentrations in the water batch drain mode.

Fig. 6.

Collection efficiency of PM1, PM2.5, and PM10 as a function of the scrubber pressure drop at variation of inlet particle concentrations in the water batch drain mode.

3. 2 Water continuous drain mode

During this operation, both the chambers were continuously filled with water and drained. At the point where the system pressure drop reached the value of interest, the fly ash was injected, and the particle removal efficiency was evaluated. Fig. 7 shows the outlet concentrations of PM₁, PM_2.5, and PM₁₀ particles for scrubber pressure drop values of 200 and 230 mmAq. Similar to the bench drain mode, with the increase in the pressure drop, the concentrations of the particles decrease. The maximum concentrations of PM₁, PM_2.5, and PM₁₀ particles differ depending on the scrubber pressure drop. Thus, for the same inlet concentration of 0.33 g/m³, the particle outlet concentration was lower when the system was operated at 230 mmAq. At a low inlet concentration of 0.17 g/m³, the outlet concentrations at system pressure drops of 200 and 230 mmAq are only slightly different. Fig. 8 shows the particle collection efficiency as a function of the scrubber pressure drop in the water continuous drain mode. The collection efficiency for particle size smaller than 2.5 μm is expressed as a function of pressure drop and the inlet duct concentration. For PM₁₀ particles the difference this difference is small because the larger particles are separated from the gas stream by the liquid film and by large droplets. Particles, small enough to follow the gas stream, are separated by small droplets. The higher the pressure drop the higher the velocity inside the vortex channel. With the increase in velocity the size of droplets decreases. Small droplets can contribute to the capture of fine particles. This is conform statement found in the literature Yi (2009).

Fig. 7.

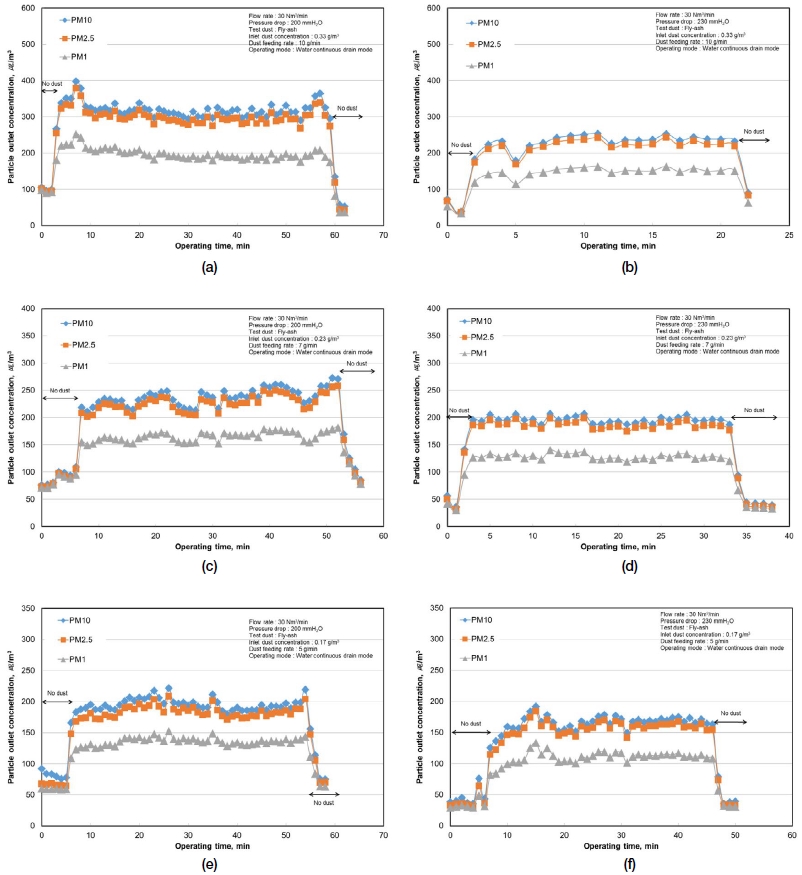

Particle outlet concentrations of PM1, PM2.5, and PM10 as a function of the scrubber pressure drop and particle inlet concentration in the water continuous drain mode.

Fig. 8.

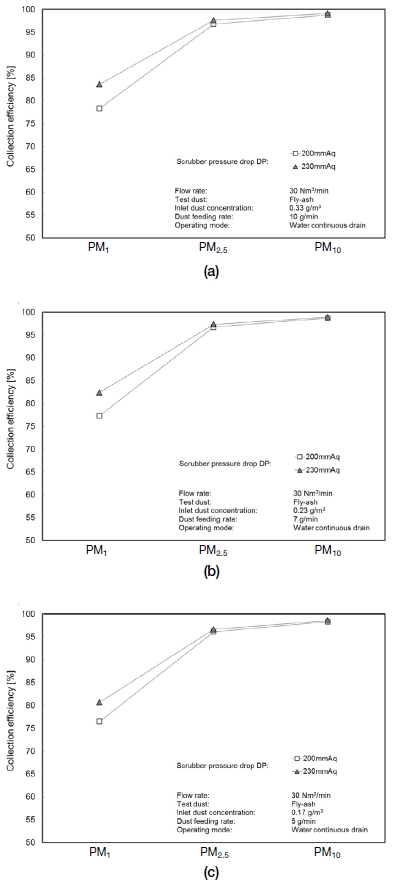

Collection effieciency of PM1, PM2.5, and PM10 as a function of the scrubber pressure drop and particle inlet concentration in the water continuous drain mode.

Fig. 9 shows the fractional collection efficiency as a function of the particle size. In the water continuous drain mode, the chambers1 and 2 are filled with water and drained continuously. This leaves both the vortex chambers wet all the time, and the particles get separated inside both chambers. Thus, the removal efficiency of PM₁ in this mode is significantly improved compared to operating the vortex scrubber with no water filling and no drain during the tests. Large particles are removed by the impingement of the particles on the bulk water layer of the scrubbing chamber whereas the small particles are separated by the water droplets dispersed in the flowing air. In order to achieve good particle removal results, large number of small droplets need to be generated. In case of the batch drain mode, water is present in the first chamber only at the begin of the test, only the second vortex chamber is practically in operation. In case of the continuous drain mode, both chambers are filled with water to keep the level constant. The subsequent particle separation in two chambers results in improvement of the efficiency for particles of the size less than 2.5 μm as indicated in the Fig. 9. The improvement of the collection efficiency in other types of scrubbers with two stage arrangements is reported in Brauer and Varma (2012).

Fig. 9.

Comparison of fractional collection efficiency in the water drain mode.

4. CFD Simulation Results

The following assumptions and simplifications were made to make the simulation possible. The ducts are rectangular, and the inlet and outlet ducts have the same cross-sectional area as the original model shown in Fig. 2. In Fig. 10, the 3D model is displayed with boundary information and indication of the initial water level (red line).

Fig. 10.

CFD Simulation boundary conditions.

In the case of vortex scrubbers, the process can be simulated in Fluent only by using the VoF method. The water phase is indicated in red and the air is indicated in blue as shown in Fig. 11. The unsteady mode was used for the simulation for a total simulation time of 1.45 s. Table 2 lists the operating conditions. After the simulation is completed, the data are loaded into the post-processing tool CFD Post as part of the Fluent package. As the system runs in the suction mode, air is first drawn from the outlet and then flows through the nozzles after the water level reduces. In this study, the initial water level was fixed in all the three cases.

Fig. 11.

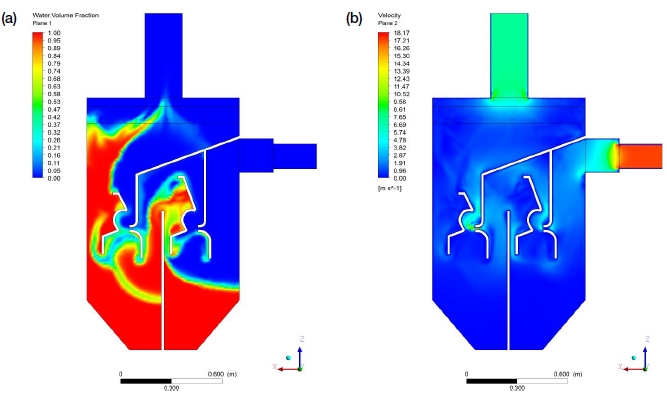

(a) Cutting plane contours of water/air volume concentration, and (b) air flow velocity distribution after 1.45 s of operation.

Table 2.

Operating and boundary conditions.

After 1.45 s of operation, water moves to the second chamber of the vortex scrubber, and the actual particle removal takes place only inside the second vortex channel as shown in Fig. 11a. High flow velocities are visible in the regions directly following the nozzles and baffles installed in front of the scrubbing nozzles as shown in Fig. 11b. Fig. 12a shows the pressure distribution inside the scrubber. As expected, the pressure drop is highest inside the second vortex chamber behind the second nozzle. Most of the particles are separated inside the second chamber, but some of them escape the second vortex channel and move toward the scrubber outlet as shown in Fig. 12b.

Fig. 12.

Cutting plane contours of (left) scrubber pressure and (right) particle mass concentration at time 1.45 s of operation.

Conclusions

The water level in the first vortex chamber varied with respect to the operating time at the water batch drain mode. The system was operated as a closed material system related to water. The water moved from the first chamber to the second chamber, remained in the first chamber with water below the vortex channel. Most of the particles were separated by the highly turbulent flow inside second chamber. The system operated in this mode is representative of the one stage scrubber unit. For the tests operated at water continuous drain mode, the same water level remained, and the water inside the first and second chamber was drained to keep the constant scrubber pressure drop throughout the test. As both the chambers were flooded with water and the separated particles left the system via drain valves, the particle collection efficiency was improved, particularly for PM_2.5 particles. The two stage vortex scrubber has good performance compared to one stage arrangement.

In the water batch drain mode operation, water moves from the first to the second chamber. As a result, only the second vortex chamber is wet, and most of the particles are separated inside the second vortex chamber.

To obtain a turbulent flow with high gas/ droplet relative velocities, the opening of the nozzle should be small enough to create vortex channel velocities higher than 20 m/s. This is done by increasing the pressure drop of the system. The results show that for the same particle inlet concentration and water drain mode conditions, the particle removal efficiency was increased with increasing pressure drop. The pressure drop of 230 mmAq is well within the range of commercial vortex scrubbers.

Because of the limitation of the CFD tool and the complexity of the three-phase system, the interaction between the solid particles and the water drops was not analyzed. The results show the effect of the water drain mode operation and flow rate variation on the water level inside the two vortex chambers.

Future work will focus on precise water level control and optimization of vortex chambers to reduce the system pressure drop and simultaneously to improve the particle collection efficiency.

Acknowledgments

This work was supported by the Korea Institute of Energy Technology Evaluation and Planning (KETEP) and the Ministry of Trade, Industry & Energy (MOTIE) of the Republic of Korea (No. 20171120100560).
